SY50U

Download the SY50U brochure HERE

Engine model Yanmar 4TNV88 - PSY

Operating weight 5300kg

Warranty 5 Year / 5,000 Hour

Compare Find a dealer

Engine
Displacement	2190 ccm
Rated power	29.1 kW / 2400 rpm
Operation Range
Max. digging depth	3420 mm
Max. digging force - arm	22.9 kN
Max. digging height	5450 mm
Max. dumping height	4155 mm
Max. vertical digging depth	2460 mm
Min. swing radius	2520 mm
Dimensions
Min. ground clearance	325 mm
Tail swing radius	980 mm
Transport height	2630 mm
Transport length	5390 mm
Transport width	1960 mm
Undercarriage/Working Device
Track gauge	1560 mm
Performance
Cooling system	4.2 L
Engine oil	7.4 L
Fuel tank capacity	78 L
Ground pressure	0.32 kg/cm²
Hydraulic tank capacity	80 L
Swing speed	10 rpm
Travel speed	4 km/h / 2.7 km/h

Extra reinforcement of major structural members and large multi-stage air and fuel filtration make the machine more stable and reliable
The tier 4 final power plant, advanced SLSS hydraulic system, optimal power control and work mode selection improve speed and power while reducing fuel consumption
Zero tail swing radius and independent boom swing allow operation in extremely confined spaces. This allows operation in locations that were previously inaccessible.
Easily accessible service points and a detachable radiator screen are among the features that make scheduled maintenance more convenient

SY_AU_NZ_SY50U_12_07_21_EN_v1_compressed.pdf

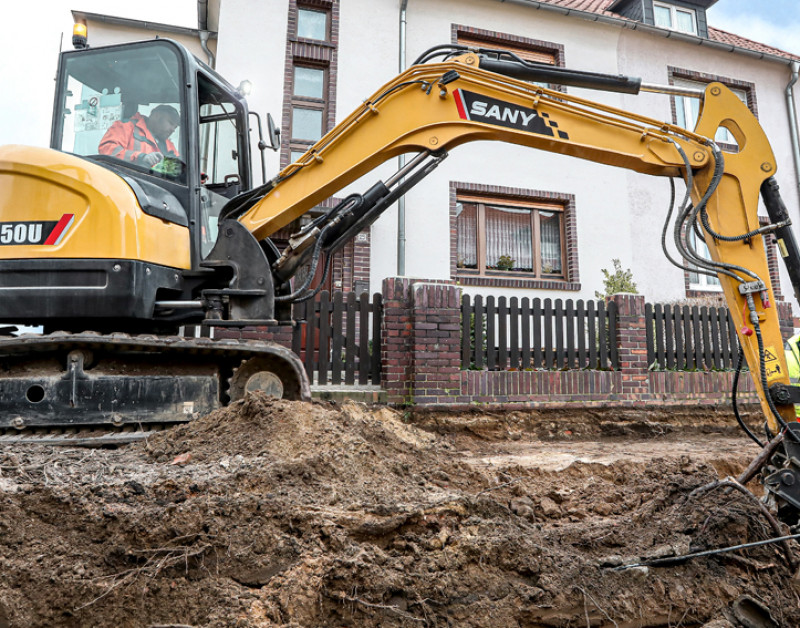

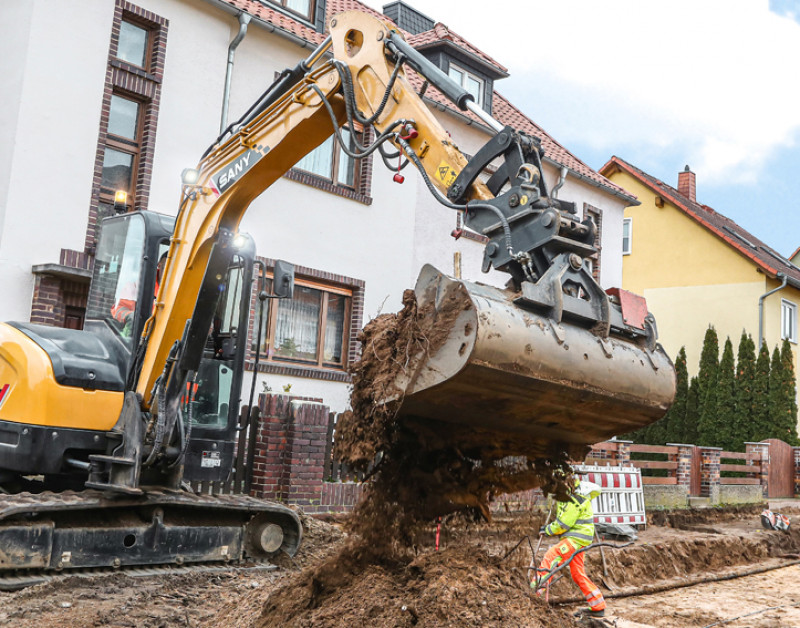

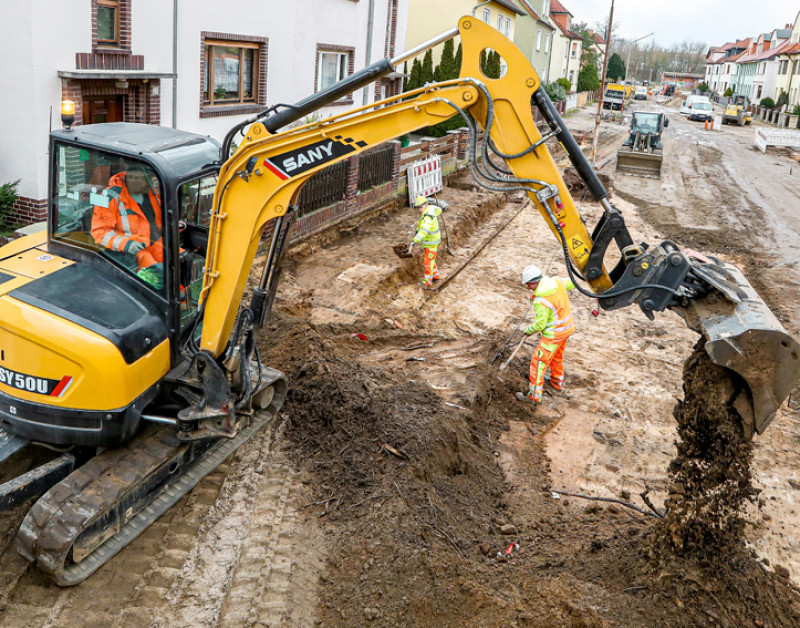

The SANY SY50U - Tier 4F in action
