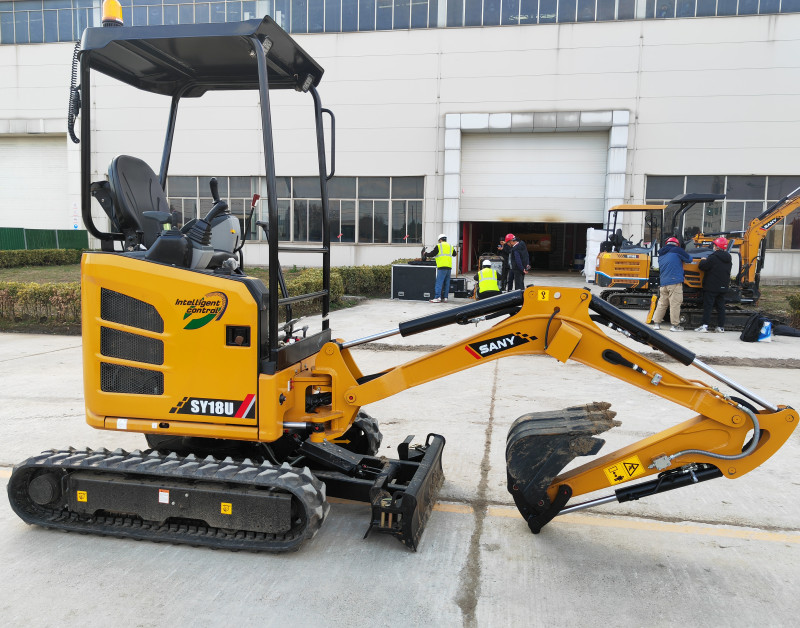

1.9 Tonne Excavators
The SANY SY18U is an ideal choice for situations with limited space, boasting exceptional power and unparalleled stability in all scenarios. Its rugged construction and effortless maintenance capabilities make it the perfect machine to meet all the needs and expectations of its users.
Engine Power：14.6 kW / 2400 rpm
Operating Weight: 1925 kg
Engine: Yanmar 3TNV80F
Download the SY18U Brochure HERE
|Engine model||Yanmar 3TNV80F|
|Rated power||14.6 kW/ 2400 rpm|
|Max. depth of blade down||320 mm|
|Max. digging depth||2385 mm|
|Max. digging height||3530 mm|
|Max. digging reach||4135 mm|
|Max. dumping height||2425 mm|
|Max. vertical digging depth||2205 mm|
|Min. ground clearance||160 mm|
|Tail swing radius||675 mm|
|Transport height||2370 mm|
|Transport length||3515 mm|
|Transport width||980/1350 mm|
|Track gauge||750/1120 mm|
High power motor
+ Equipped with Yanmar engine, 3TNV80F, exclusively for SANY.
+ It has a high power, 14.6kw, which ensures the reliability of the machine under bad working conditions.
Seat with premium suspension
+ Equipped with a suspension seat to improve operator comfort.
Stable tail and swinging arm
+ The range of the deflection working device is 625 mm left and 400 mm right.
+ Both sides can easily be dug out to the outside edge of the track.
+ The car can be operated in corners and other confined spaces.
+ The adjustable width of the undercarriage is 980-1350 mm.
+ Improving the stability of the whole machine, the excavator can overcome the working space below 1m.
+ The rotating shovel can ensure the passability and improve work efficiency
- Hammer pipe lines
- Two-way lines (Attachement has two functions)
- Boom&Arm safety valve
- FOPS&ROPS Cabin
- Working flash lamp
- Travel acoustic alarm
- SAE/BHL Patten Change
- Rubber track
- Thick undercover
- Zero-swing or short tail
- Battery main switch
- Engine emergency cut off
- Travel Motor: NACHI
