| Engine |
| Engine model |
Vmax Permanent magnet VAIYS62317-001 |
| Rated power |
10 kW/2000 rpm |
| Operation Range |
| Ground Pressure |
0.31 kg/cm2 |
| Max. depth of blade down |
320 mm |
| Max. digging depth |
2360 mm |
| Max. digging height |
3410 mm |
| Max. digging reach |
4000 mm |
| Max. dumping height |
3665 mm |
| Max. vertical digging depth |
2215 mm |
| Operating weight |
1965kg |
| Dimensions |
| Min. ground clearance |
180 mm |
| Tail swing radius |
900 mm |
| Track length |
900mm |
| Transport height |
980 mm |
| Transport length |
3624 mm |
| Transport width |
980/1350 mm |
| Undercarriage/Working Device |
| Bucket capacity |
0.04 m³ |
| Track gauge |
750/1120 mm |
| Performance |
| Arm digging force |
9.2 kN |
| Bucket digging force |
15.2 kN |
| Gradeability |
30° |
| Ground pressure |
0.31 kg/cm2 |
| Swing speed |
10 rpm |
| Travel speed |
3-4 km/h |
SHOW STRENGTH
Improved stability and fewer stress concentrations – the components exposed to the most stress (the boom and the bucket arm) have been extended significantly again. This has resulted in the service life being extended by 30%.
POWER PACK
The high power capacity and short charging time of the innovative battery pack mean that the mini excavator is quickly ready for operation and can work continuously for up to six hours on one full battery charge – enough for an entire working day.
DESIGNED FOR EVERYDAY WORK
The comfortable driver's seat with a high backrest offers excellent comfort and enough freedom of movement to be able to reach all of the controls comfortably. There is also plenty of room in the footwell and the new pedal layout makes operating the pedals much more convenient and safer.
VISIBILITY FOR SAFETY
The TOPS-/FOPS-tested operator's platform offers excellent all-round visibility. In poor lighting conditions, this is supported by two LED working lights in the roof lining and one on the boomer.
PERFECT DUO
The two perfectly matched components – the permanent magnet synchronous motor with its high power density and the innovative, reliable battery pack – provide a high level of efficiency and low energy consumption.
LESS IS MORE
The new mini excavator is also modest with respect to operating costs. Users can make considerable savings as the machine consumes around 30% less energy and its maintenance costs are reduced by 80%.
The small excavator with a huge range of standard features

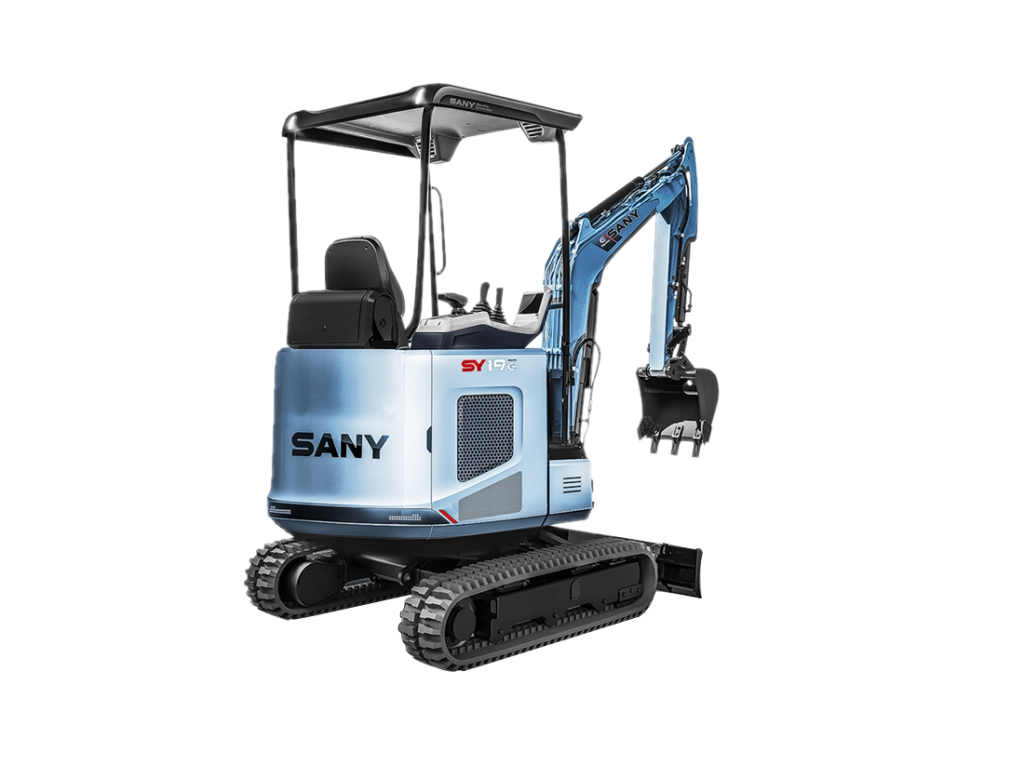

The SY19E mini excavator is already fitted with an excellent range of equipment ex-works. This includes the additional proportional control hydraulic circuit and the two travel speeds that can be selected.
OPERATORS COMFORT
- Armrests (adjustable)
- 12v Outlets
- 7" touch-screen
- Canopy (TOPS-/FOPS-certified)
- Rubber Mat
WORKING EQUIPMENT
- Breaker & Shear line proportional on joystick with piping
- Safety Valve on blade cylinder
UNDERCARRIAGE
- Rubber Tracks 230 mm
- Holes/loops for fixing
WORKING LIGHTS
- Lights - front (LED)
- Lights - boom (LED)
ENGINE
- Grease gun holder
- 380 V charging cable
- 220 V charging cable (optional)
- 110 V charging cable (optional)
HYDRAULIC SYSTEM
- Swing brake
- 2 speed travel
- Piping for auxiliary control circuit 1
- Hydr. Pre-pressure operating joysticks
SAFETY
- Battery master switch
- Travel alarm
- Emergency lowering system
- Handraiils
- Lockable covers
- Password protected startup
Engine model Vmax Permanent magnet VAIYS62317-001
Operating weight 1965kg
