SY500H

Engine model Cummins Tier 4

Operating weight 50500kg

Warranty 4 Years / 8,000 Hour

Compare Find a dealer

Engine
Displacement	11.8 L
Emission standard	Tier 4 Final
Max. torque	2034/1400 N·m/rpm
Rated power	298/2100 kW/rpm
Operation Range
Height at min. swing radius	9103 mm
Max. digging depth	7647 mm
Max. digging height	10929 mm
Max. digging reach	12035 mm
Max. dumping height	7705 mm
Max. vertical digging depth	6278 mm
Min. swing radius	5216 mm
Dimensions
Min. ground clearance	560 mm
Tail swing radius	3765 mm
Track length	5440 mm
Transport height	3874 mm
Transport length	12103 mm
Transport width	3360 mm
Upper width	3290 mm
Undercarriage/Working Device
Bucket capacity	2.2 m³
Track gauge	2740 mm
Performance
Arm digging force	223 kN
Bucket digging force	200 kN
Engine oil	34 L
Fuel tank capacity	680 L
Gradeability	70%/35°
Hydraulic tank capacity	480 L
Swing speed	8 rpm
Travel speed	5.2/3.0 km/h

Several attachments and work tools are available to satisfy European and American high-end market demand.
Multiple counterweight weights available. Easily removable to satisfy various transportation regulations and requirements.
The new generation Cummins engine meeting T4F emission standards of the European and American markets.
Operator selectable work modes and all aspects ofthe machine configuration can be displayed on the operator monitor screen for operator convenience.
The widened, heated suspension seat was carefully selected based on many hours of operator feedback.

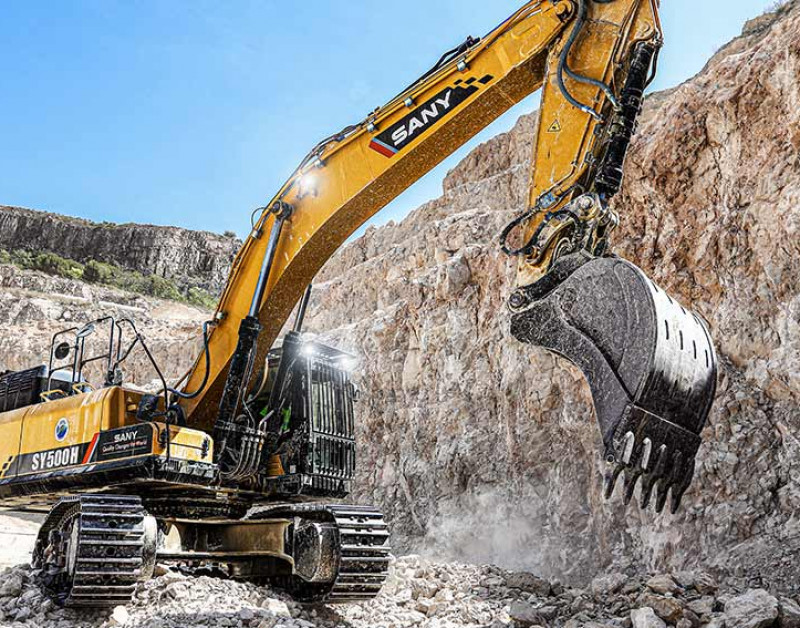

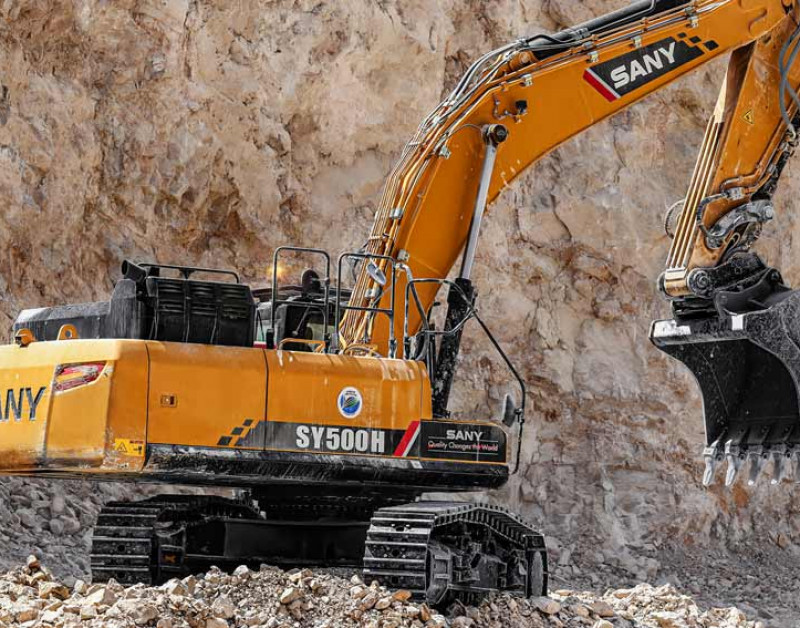

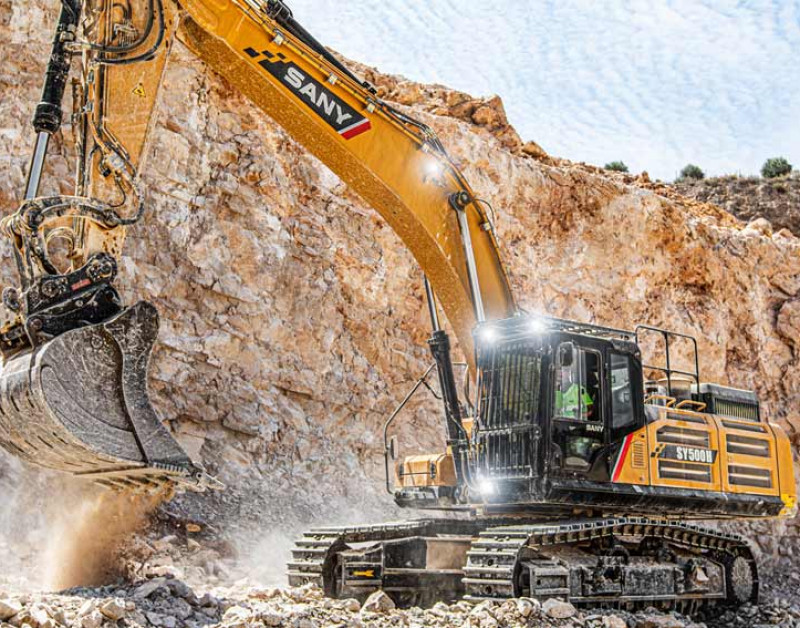

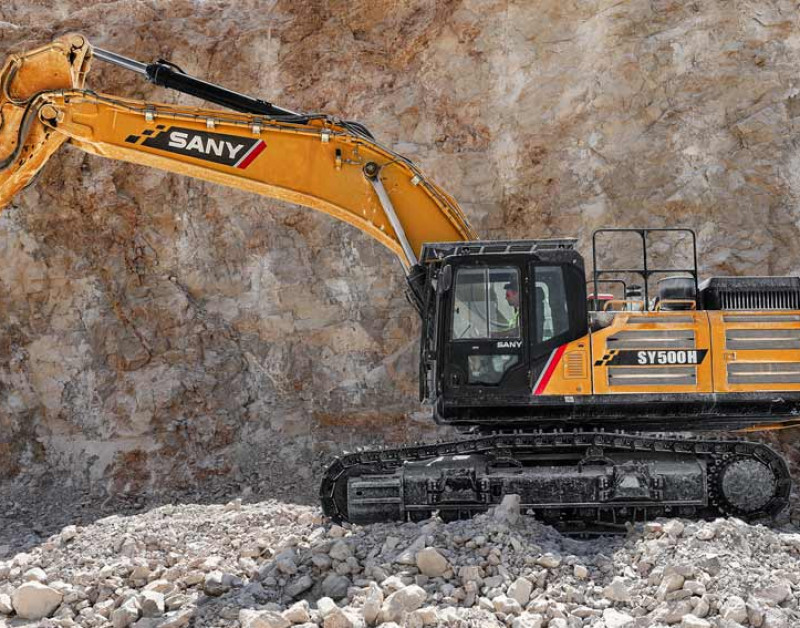

The SANY SY500H - Tier 4F in action
