                 Back to Piling Machinery




                                    Engine model                                    6UZ1 ISUZU





                                    Operating weight                                    81 T






        SR235-S

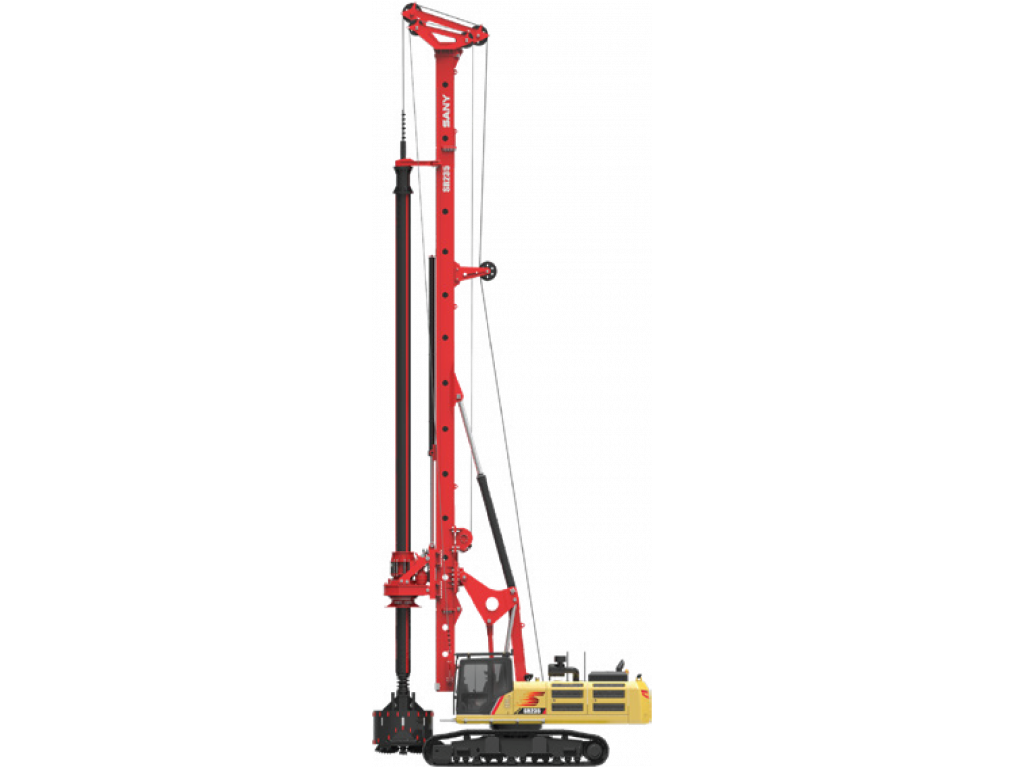

SR235-S Piling Rig
Widely used in small dia. & deep borehole construction in civil engineering, high main hoist lifting up and down speed, high verticality of finished borehole, high working efficiency in civil construction.
Download the SR235 Brochure HERE
| Pile | |
|---|---|
| Max. drilling depth | 68/54 m |
| Max. drilling diameter | 2000 mm |
| Main Chassis | |
| Base Engine | 6UZ1 ISUZU |
| Chassis length | 7265 mm |
| Emission regulation | Tier III |
| Engine displacement | 9.84 L |
| Engine Power | 257/2000 kW/rpm |
| Extension width | 4500 mm |
| Swing radius | 4360 mm |
| Overall Machine | |
| Operating weight | 81 T |
| Overall height | 22870 mm |
| Transport height | 3660 mm |
| Transport width | 3540 mm |
