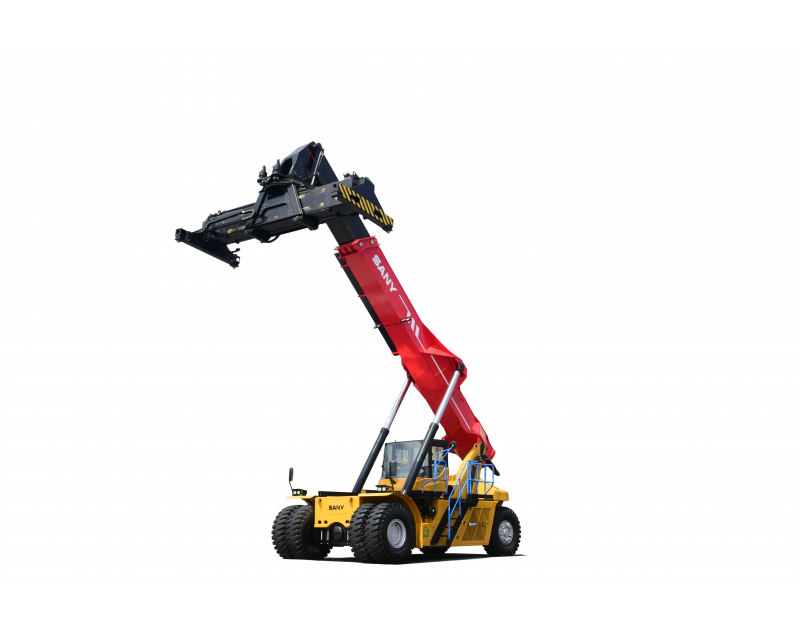

SRSC1009-6E

The SRSC1009-6E 39T Reach Stacker has a rated power of 164 kW /2300 rpm and can stack 6 (8'6") containers.

Download the SRSC1009-6E Brochure HERE

Engine model CUMMINS QSB 6.7

Operating weight 39 T

Compare Find a dealer

Engine
Emission standard	Stage Ⅲ
Engine model	CUMMINS QSB 6.7
Max. torque	949 kW/1500 rpm
Rated Capacity	10
Rated power	164 kW /2300 rpm
Operation Range
Front Tyre Distance	3280
Gradeability (unloaded/loaded)	33/27
Hydraulic System Pressure	220
Max Descending Speed (unloaded/loaded)	400/400
Max Hoisting Speed (unloaded/loaded)	450/400
Max Travelling Speed (unloaded/loaded)	28/25
Min. Ground Clearance	250
Min. Turning Radius	6800
No. of Stack	6 (8'6")
Overall Weight	39
Rear Tyer Distance	2450
Tyre	14.00-24 28PR
Dimensions
20' Container Aile Width	10000
40' Container Aile Width	13600
Overall Height	4000
Overall Height	4000
Overall Length	11000
Overall Width	6053-12185
Wheel Base	5000
Performance
Axle Model	Kessler D81 PL488
Transmission	DANA 13.7HR32334
Spreader
Application	ISO20'/40'/45'container
Inclination Angle	－
Inclination Angle	0~64.5
Shift Distance	±600
Slewing Angle	+105/-195
Spreader Model	SDJE100H
Weight	4.3
Boom
Max Hoisting Height	16200
