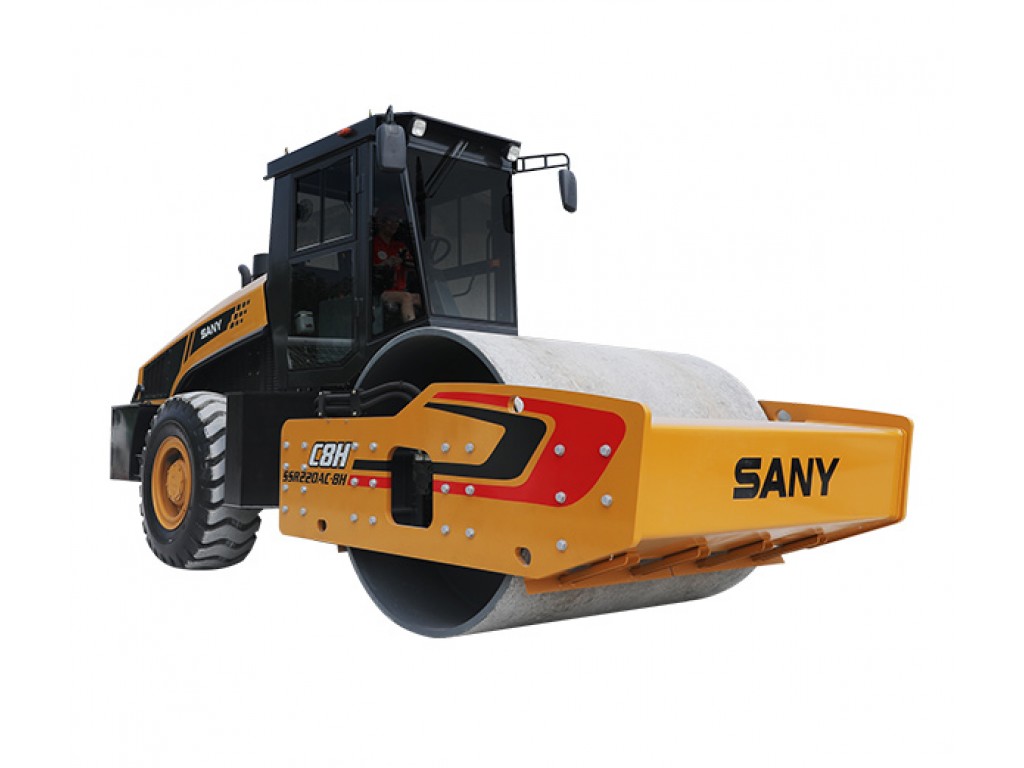

SSR220AC-8H
22 Tonne Roller
Engine model
WEICHAI
Operating weight
22000kg
| Engine |
| Displacement |
6.75L |
| Engine model |
WEICHAI |
| Rated power |
147 kW |
| Dimensions |
| Min. ground clearance |
440mm |
| Performance |
| Fuel tank capacity |
300L |
| Gradeability |
30% |
| Hydraulic tank capacity |
100L |
| Travel speed |
0 ~ 8km/h |
HIGH EFFICIENCY
- 10% greater excitation force than other products in the same category resulting in 16.7% greater production.
EXTENDED LIFE TIME
- The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.
- The engine air filter is raised and the air is filtered twice to protect the engine.
- The hydraulic system contains three stage filtration.
OPERATOR COMFORT
- Cab mounted on vibration damping mounts
- Cab climate control
- Operator control forces have been reduced
SAFETY FEATURES
- Rounded bumpers front and rear
- Large rear glass and sloped hood for greater visibility
